Discover Ifor Williams Box Van Trailers: Versatile, Durable, and Customizable

Overview of the Box Van Trailers

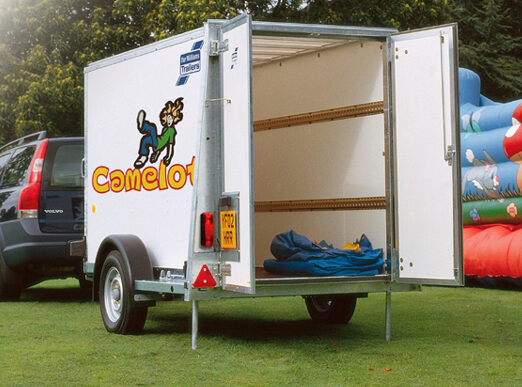

The Ifor Williams Box Van Trailers are designed to meet a wide range of transportation needs, from domestic to commercial applications. With various size and configuration options, these trailers provide a reliable and versatile solution for moving goods, equipment, and more.

Key Features and Specifications

Size and Axle Options:
- Three Height Options, Three Width Options, and Five Length Options to suit different cargo capacities.
- Smaller models are available with single or twin axle configurations, allowing users to choose based on load requirements.
Durable Construction:
- White-coated side panels are tough, easy to clean, and suitable for branding with graphics or logos.
- Resin-coated plywood platform ensures durability and ease of loading and unloading.
Rear Door Configurations:

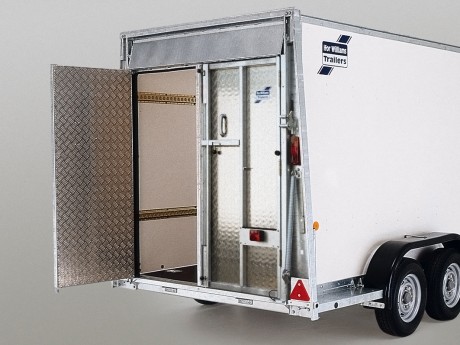

- Choose between roller shutters, combination ramp doors, or van rear doors for a tailored solution to your transportation needs.
Aerodynamic and Efficient:
- A tapered front section maximizes cargo space while reducing drag, leading to improved fuel efficiency over long distances.
Advanced Suspension System:
- Features the exclusive beam axle and leaf spring suspension, offering stability and safety under load, widely recognized for its durability and low maintenance.

Applications

Commercial Use: Perfect for transporting goods, equipment, and supplies in various industries, including sports, gardening, and airport shuttle services.
Branding Opportunity: The clean side panels provide a blank canvas for business graphics and logos, offering a professional edge and enhanced brand exposure.
Domestic Use: Ideal for moving house, transporting personal items, or leisure activities like carrying sports or gardening equipment.

Conclusion

Ifor Williams Box Van Trailers combine strength, durability, and versatility with customizable options to meet diverse transportation needs. Whether for commercial branding or practical use, these trailers offer reliable performance and a professional appearance.

Download Brochures

Box Van Brochure

Box Van Price List

Key Features

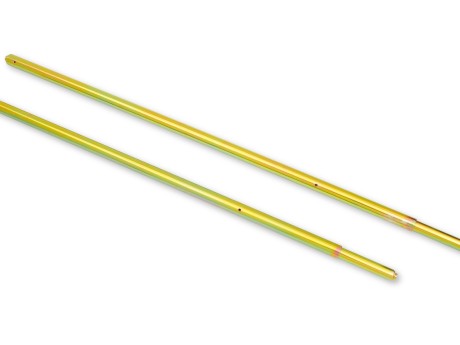

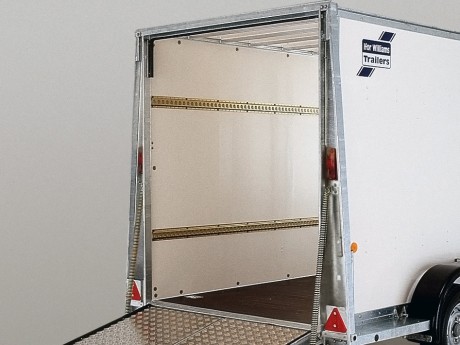

All braked models come with cargo rails fitted as standard. Optional shoring poles and cargo straps mean the load can be restrained safely and securely while travelling. Additional restraint can be provided with extra lashing points, offered as an option.

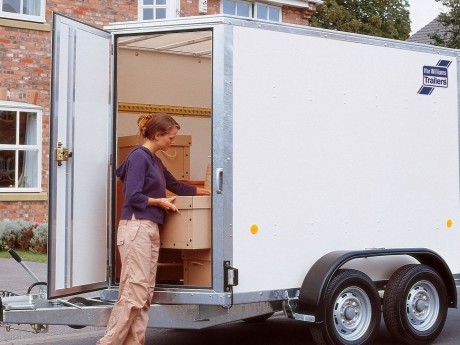

All of our braked box vans feature a lockable front access door for convenient access to the load. The galvanized steel chassis, roof frame and drawbars offer unbeatable corrosion protection.

Specifications

Unladen weights listed are for trailers fitted with roller shutter doors except for BV84 models which show weights for trailers with van doors. Weights for alternative apertures can be found in the box van brochure.

Model	Tyres	Gross Weight	Unladen Weight	Internal Length	Internal Width	Overall Length	Overall Width
BV84 Single Axle	165R13C	1400kg	515kg	2.40m	1.17m	3.90m	1.80m
BV84	165R13C	2700kg	605kg	2.40m	1.17m	3.90m	1.80m
BV85 5′ H/R	165R13C	2700kg	640kg	2.40m	1.47m	4.10m	2.10m
BV85 5′ H/R Single Axle	165R13C	1400kg	550kg	2.40m	1.47m	4.10m	2.10m
BV85 6′ H/R	165R13C	2700kg	675kg	2.40m	1.47m	4.10m	2.10m
BV85 6′ H/R Single Axle	165R13C	1400kg	585kg	2.40m	1.47m	4.10m	2.10m
BV85 7′ H/R	165R13C	2700kg	770kg	2.40m	1.47m	4.10m	2.10m
BV85 7′ H/R Single Axle	165R13C	1400kg	620kg	2.40m	1.47m	4.10m	2.10m
BV105 5′ H/R	165R13C	2700kg	705kg	3.00m	1.47m	4.70m	2.10m
BV105 6′ H/R	165R13C	2700kg	735kg	3.00m	1.47m	4.70m	2.10m
BV105 7′ H/R	165R13C	2700kg	770kg	3.00m	1.47m	4.70m	2.10m
BV125 6′ H/R	165R13C	2700kg	800kg	3.60m	1.47m	5.30m	2.10m
BV125 7′ H/R	165R13C	2700kg	850kg	3.60m	1.47m	5.30m	2.10m
BV106 6′ H/R	155/70R12C	3500kg	900kg	3.00m	1.73m	4.70m	2.30m
BV106 7′ H/R	155/70R12C	3500kg	935kg	3.00m	1.73m	4.70m	2.30m
BV126 6′ H/R	155/70R12C	3500kg	980kg	3.60m	1.73m	5.35m	2.30m
BV126 7′ H/R	155/70R12C	3500kg	1030kg	3.60m	1.73m	5.35m	2.30m

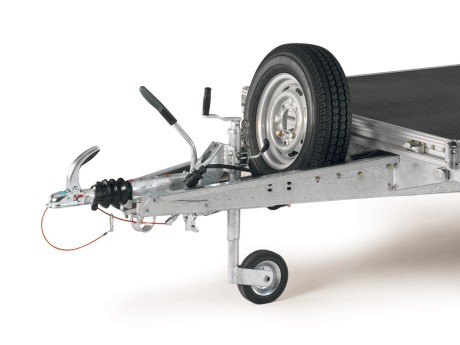

Accessories

Various options and accessories are available for your trailer. Some may need to be ordered with your trailer as a factory fit item, while others can be purchased at a later date. Please check with your distributor before ordering.
