General Duty Trailer

General Duty Trailer

General Duty Trailer

SKU General Duty Trailer Categories , Brand:

Discover the GD Trailers: Robust and Versatile for General Use

Overview of the GD Trailers

The GD trailer range by Ifor Williams is designed for reliability, durability, and versatility. Built around a welded steel, galvanized chassis, these trailers offer a solid construction with fixed front and side panels, supported by galvanized steel channel sections for added strength and resilience.

Key Features and Specifications

  • Durable Construction:

    • Fixed front and side panels made from galvanized steel ensure long-lasting durability.
    • Welded steel chassis and beam axle with leaf-sprung suspension for enhanced stability and performance.

  • Versatile Sizing Options:

    • Width Options: Internal widths range from 1.23m (4’) to 1.71m (5’6″).
    • Length Options: Internal lengths range from 1.84m (6’) to 3.71m (12’2″).
    • Available in single or twin axle configurations to suit various load requirements.

  • Loading Options:

    • Equipped with either a tailboard or rear ramp with assistor, making loading and unloading simple and efficient.

  • Weight Capacities:

    • Maximum gross weight varies between 1400kg and 2700kg, ensuring the GD range can handle diverse transport needs.

Practical Applications

The GD trailers are ideal for a variety of uses:

  • Agricultural Tasks: Transporting tools, small equipment, or livestock feed.
  • Construction Work: Carrying materials, machinery, or debris.
  • General Use: Perfect for domestic or light commercial tasks requiring a durable and flexible trailer.

Conclusion

The GD trailer range offers a dependable solution for users in need of a durable, multi-functional trailer. With customizable size options, strong construction, and practical loading features, the GD series is perfect for general-purpose use in agriculture, construction, and beyond.

Download Brochures


Commercial Brochure


Commercial Price List

Key Features

Trailers are fitted with a full width ramp or tailboard as standard

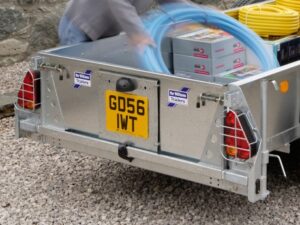

GD Tailboard

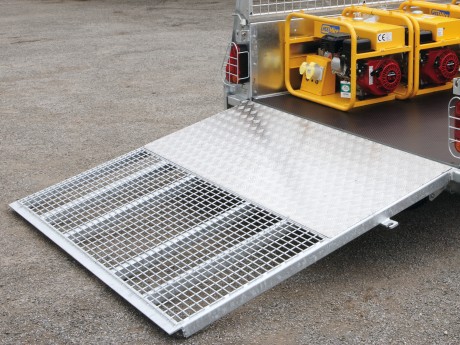

GD Ramp
Resin Coated Plywood Platform
Spare Wheel & Carrier
Heavy Duty Jockey Wheel
GD Prop Stand
Security Marking & Registration with TER

Specifications
Specifications

Model Tyres Gross Weight Unladen Weight Internal Length Internal Width Overall Length Overall Width
GD64 Single Axle 165R13C 1400kg 325kg 1.89m/6’2″ 1.25m/4’1″ 2.95m 1.75m
GD84 Single Axle 165R13C 1400kg 355kg 2.5m/8’2″ 1.25m/4’1″ 3.60m 1.75m
GD84 Single Axle 175/75R16C 1500kg 395kg 2.5m/8’2″ 1.25m/4’1″ 3.60m 1.80m
GD84 Single Axle 6.50R16C 1500kg 400kg 2.5m/8’2″ 1.25m/4’1″ 3.60m 1.80m
GD84 165R13C 2700kg 450kg 2.55m/8’2″ 1.25m/4’1″ 4.0m 1.80m
GD85 Single Axle 165R13C 1400kg 395kg 2.5m/8’2″ 1.58m/5’2″ 4.0m 2.20m
GD85 165R13C 2700kg 485kg 2.5m/8’2″ 1.58m/5’2″ 4.0m 2.20m
GD105 165R13C 2700kg 585kg 3.11m/10’2″ 1.58m/5’2″ 4.55m 2.20m
GD125 165R13C 2700kg 585kg 3.73m/12’2″ 1.58m/5’2″ 4.95m 2.20m
GD106 165R13C 2700kg 600kg 3.11m/10’2″ 1.77m/5’9″ 4.55m 2.30m
GD126 165R13C 2700kg 625kg 3.73m/12’2″ 1.77m/5’9″ 4.95m 2.30m

Accessories

Various options and accessories are available for your trailer. Some may need to be ordered with your trailer as a factory fit item, while others can be purchased at a later date. Please check with your distributor before ordering.

GD Prop Stand

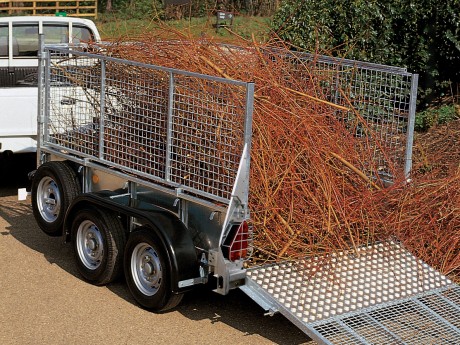

Mesh Sides
commercial Lashing Ring Recessed
Ladder Rack

Related products

  • CT115 & CT136

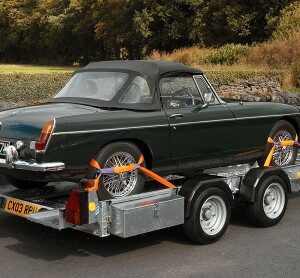

    CT115 & CT136
    Read more
  • Braked Q

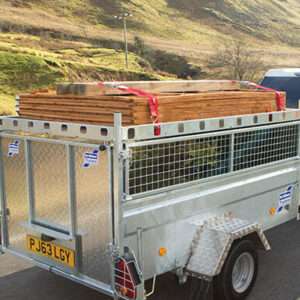

    Braked Q
