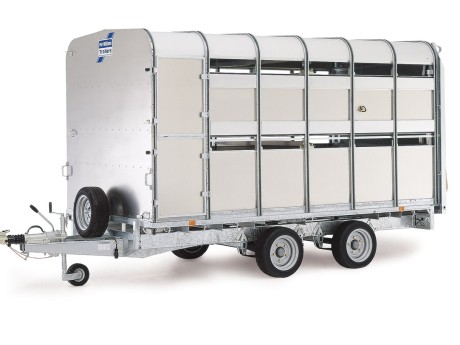

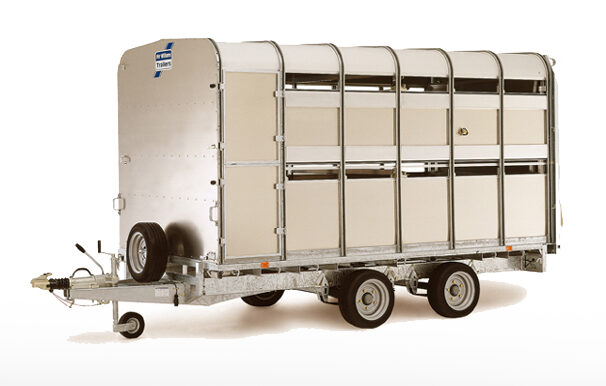

The DP120 range from Ifor Williams is designed for maximum versatility, offering a substantial volume capacity and a gross weight limit of 3500kg. This model also includes the option of a removable container, allowing it to function as a standard flatbed trailer when needed.
Available in 10’, 12’, and 14’ body lengths, all models feature a standard headroom of 6’. For added support, a tri-axle is available as an option on the 12’ model and comes standard on the 14’ version. Each size option is equipped with either a standard ramp or the advanced EasyLoad ramp and folding deck system.

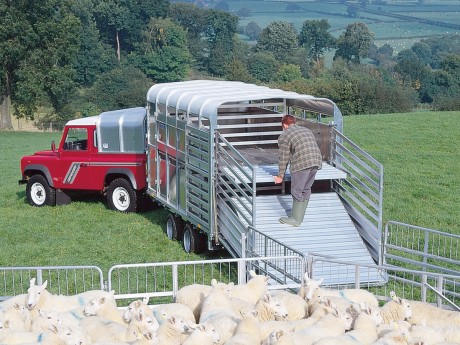

Unique to Ifor Williams, the factory-fitted EasyLoad ramp and folding deck system make upper-deck loading hassle-free. This innovative feature eliminates the need to manually handle ramps or livestock, making the loading process safe and straightforward.
When folded away, the deck system allows the trailer to be used for transporting cattle and other livestock. The components are conveniently stowed on board for easy access. Deployment or storage of the deck system can be done within minutes, requiring no special tools or equipment.

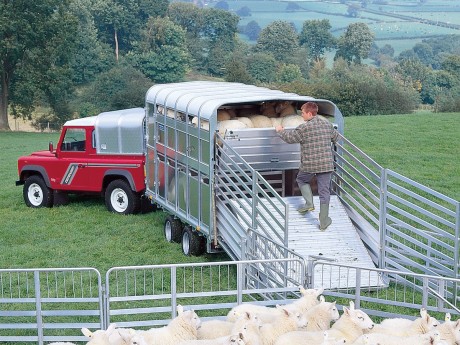

The EasyLoad ramp, operated with the folding deck, is designed to lift effortlessly with the help of two gas springs. This system minimizes operator effort, and the ramp securely locks into place once deployed. The ramp also stows just as easily, ensuring smooth operation for frequent use.
The DP120 range combines capacity, versatility, and innovative design, making it an ideal choice for diverse livestock transportation needs. Please specify the EasyLoad ramp option at the time of order for maximum functionality.
Built to last
The galvanized steel chassis and drawbar offer unbeatable corrosion protection. Couple this with the high strength, impact-resistant aluminium side panels, these trailers will often outlast the vehicles that tow them. The distinctive steel roof channels on braked models give a strong and rigid frame. The flooring on these trailers comprises of thick pressure treated timber planking protected by 2mm thick slip resistant aluminium treadplate.
Stability when towing
All of our braked trailers feature the exclusive Ifor Williams beam axle and leaf spring suspension system which has been developed and refined for a safe and stable ride. Similar systems are widely used on commercial vehicles where performance under load is essential. Renowned for its durability and ease of maintenance the Ifor Williams beam axle system contributes significantly to the low depreciation of our trailers.

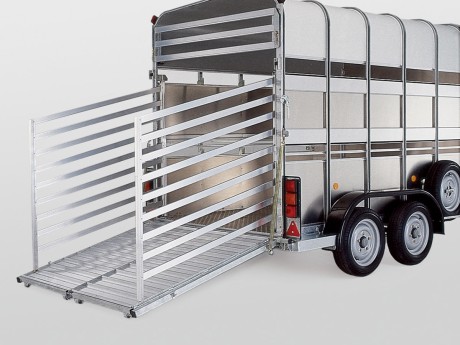

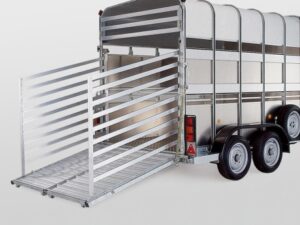

All sizes are available with either the standard ramp or with the EasyLoad ramp and folding deck system.
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| DP120 10’x6’ H/R | 195/60R12C | 3500kg | 1060kg | 3.00m | 1.80m | 4.65m | 2.03m |
| DP120 12’x6’ H/R | 195/60R12C | 3500kg | 1150kg | 3.60m | 1.80m | 5.16m | 2.03m |
| DP120T 12’x6’ H/R (Tri-Axle) | 195/60R12C | 3500kg | 1270kg | 3.60m | 1.80m | 5.16m | 2.03m |
| DP120T 14’x6’ H/R (Tri-Axle) | 195/60R12C | 3500kg | 1355kg | 4.37m | 1.80m | 5.76m | 2.03m |

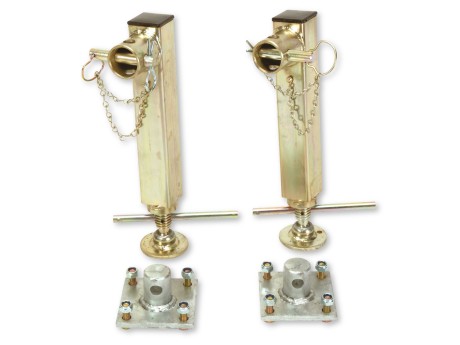

Various options and accessories are available for your trailer. Some may need to be ordered with your trailer as a factory fit item, while others can be purchased at a later date. Please check with your distributor before ordering.
