The TA510 range by Ifor Williams offers high-specification trailers, built for those needing maximum volume and gross weight. With a robust design and multiple size options, it is suitable for various livestock transportation needs.
The TA510 range is available in 10’, 12’, 14’, and newly introduced 16’ body lengths, with internal headroom options of 4’, 6’, and 7’. The 7’ height version includes an optional center partition, allowing two 16.2hh horses to be comfortably transported. All models have a maximum gross weight of 3500kg, with a payload range between 1950kg and 2550kg, depending on the specific size and configuration.

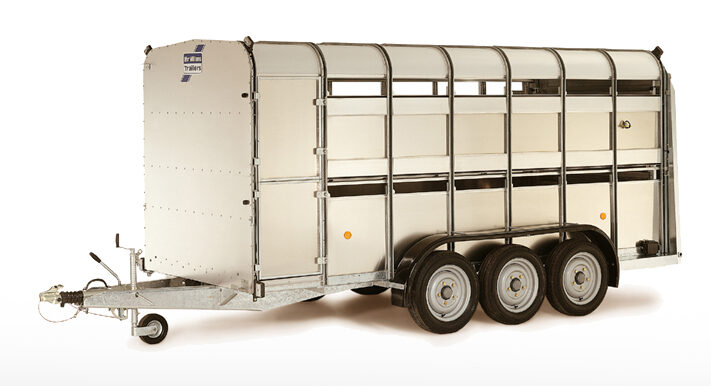

Each trailer size can be fitted with a standard ramp, combination ramp doors, or the innovative EasyLoad ramp and folding deck system. The 10’-14’ trailers come with a twin axle as standard, while the 12’ and 14’ models offer a tri-axle option, and the 16’ model includes a tri-axle as standard. These trailers feature leaf-sprung suspension, a galvanized steel chassis, aluminum side panels, a heat-reflecting roof, and a rear ramp covered with grip-faced aluminum planking.
The factory-fitted EasyLoad ramp and folding deck system, unique to Ifor Williams, simplifies upper deck loading without needing to manually handle ramps or livestock. All components are stored on board, ready for quick deployment within minutes and without special tools.
The EasyLoad ramp deploys with minimal effort, assisted by two gas springs, and locks securely in place. New for 2024, the ramp can be stowed without leaving the loading area, offering even greater convenience.
The TA510 range provides a durable, flexible solution for livestock transport, with advanced features like the EasyLoad system ensuring efficiency and ease. Be sure to specify the EasyLoad ramp option upon order for enhanced functionality.
Built to last
The galvanized steel chassis and drawbar offer unbeatable corrosion protection. Couple this with the high strength, impact-resistant aluminium side panels, these trailers will often outlast the vehicles that tow them. The distinctive steel roof channels on braked models give a strong and rigid frame. The flooring on these trailers comprises of thick pressure treated timber planking protected by 2mm thick slip resistant aluminium treadplate.
Stability when towing
All of our braked trailers feature the exclusive Ifor Williams beam axle and leaf spring suspension system which has been developed and refined for a safe and stable ride. Similar systems are widely used on commercial vehicles where performance under load is essential. Renowned for its durability and ease of maintenance the Ifor Williams beam axle system contributes significantly to the low depreciation of our trailers.
Unladen weight may vary with different configurations.
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| TA510 10’x6’ H/R | 175/75R16C | 3500kg | 970kg | 3.08m | 1.75m | 4.60m | 2.30m |
| TA510 10’x6’ H/R | 6.50R16C | 3500kg | 970kg | 3.08m | 1.75m | 4.60m | 2.30m |
| TA510 10’x7’ H/R | 175/75R16C | 3500kg | 995kg | 3.08m | 1.75m | 4.60m | 2.30m |
| TA510 10’x7’ H/R | 6.50R16C | 3500kg | 995kg | 3.08m | 1.75m | 4.60m | 2.30m |
| TA510 12’x6’ H/R | 175/75R16C | 3500kg | 1105kg | 3.74m | 1.75m | 5.17m | 2.30m |
| TA510 12’x6’ H/R | 6.50R16C | 3500kg | 1105kg | 3.74m | 1.75m | 5.17m | 2.30m |
| TA510 12’x7’ H/R | 175/75R16C | 3500kg | 1130kg | 3.74m | 1.75m | 5.17m | 2.30m |
| TA510 12’x7’ H/R | 6.50R16C | 3500kg | 1130kg | 3.74m | 1.75m | 5.17m | 2.30m |
| TA510 14’x6’ H/R | 6.50R16C | 3500kg | 1155kg | 4.32m | 1.75m | 5.83m | 2.30m |
| TA510T 14’x6’ H/R (Tri-Axle) | 175/75R16C | 3500kg | 1265kg | 4.32m | 1.75m | 5.83m | 2.30m |
| TA510 14’x7’ H/R | 6.50R16C | 3500kg | 1185kg | 4.32m | 1.75m | 5.83m | 2.30m |
| TA510T 14’x7’ H/R (Tri-Axle) | 175/75R16C | 3500kg | 1295kg | 4.32m | 1.75m | 5.83m | 2.30m |
| TA510T 16’x4’ (Tri-Axle) | 175/75R16C | 3500kg | 1035kg | 4.93m | 1.75m | 6.45 | 2.3m |
| TA510T 16’x6’ (Tri-Axle) | 175/75R16C | 3500kg | 1400kg | 4.93m | 1.75m | 6.45 | 2.3m |
| TA510T 16’x7’ (Tri-Axle) | 175/75R16C | 3500kg | 1430kg | 4.93m | 1.75m | 6.45 | 2.3m |
Various options and accessories are available for your trailer. Some may need to be ordered with your trailer as a factory fit item, while others can be purchased at a later date. Please check with your distributor before ordering.
