The GH models by Ifor Williams are designed with galvanized welded construction and leaf spring suspension, making them robust trailers built to withstand tough conditions. The GH range includes four versatile models: GH64, GH94, GH94BT, and GH1054, each catering to specific plant transportation needs.
The single-axle GH64 is compact yet durable, with a 1230kg payload capacity, making it ideal for transporting smaller equipment such as micro-excavators. Its compact design allows it to be easily towed by a car, providing a convenient option for smaller plant items.
The GH94 model comes in two versions:
Both versions feature a thick, 24mm resin-coated plywood platform that can accommodate rollers and various mini-excavators.
The GH1054 is the most robust model in the GH range, only available with a beavertail feature and heavily treaded 185/70R13C tires. This model offers one of the highest payload capacities produced by Ifor Williams, ideal for larger equipment like hi-tip dumpers and mini-excavators with a central center of gravity.
The GH range provides durable, flexible, and high-capacity trailers for a variety of plant transport needs, making them suitable for demanding conditions and heavy-duty equipment.
Three self-supporting knife-edge options are available on the GH range.

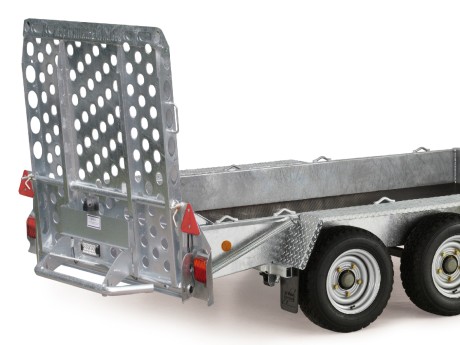

• The 1.2m (3’9″) full width ramp provides the benefits of a full width ramp and is bevelled to help guide the tracks or wheels of plant being loaded.
• The 1.45m (4’9″) bevelled ramp offers a reduced loading angle of 13° during loading and the ramp is bevelled to help guide the tracks or wheels of plant being loaded.

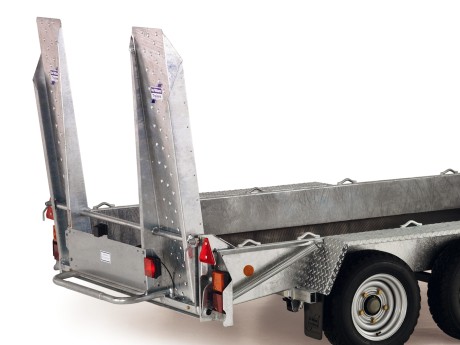

• The 1.45m (4’9″) sliding skids offers all the benefits of the 1.45m bevelled ramp with further flexibility for easier loading of narrower plant e.g. access platforms.
In addition a fourth option, comprising of 1.2m (3’9″) sliding skids is available for the GH1054 only. This version offers maximum payload.
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| GH64 | 195/55R10C | 1500kg | 270kg | 1.88m/6’1″ | 1.23m/4′ | 3.66m/12′ | 1.733m/5’8″ |
| GH94 | 195/55R10C | 2700kg | 500kg | 2.79m/9’1″ | 1.31m/4’3″ | 4.587m/15′ | 1.834m/6′ |
| GH94BT | 165R13C | 2700kg | 530kg | 2.79m/9’1″ | 1.31m/4’3″ | 4.617m/15’1″ | 1.778m/5’10” |
| GH1054 | 185/70R13C | 3500kg | 660kg | 3.04m/9’11” | 1.62m/5’4″ | 5.009m/16’5″ | 2.090m/6’10” |
| GH106 | 185/70R13C | 3500kg | 710kg | 3.045m/9’11” | 1.840m/6′ | 4.956m/19’6″ | 2.308m/7’6″ |
| GH126 | 185/70R13C | 3500kg | 765kg | 3.660m/12′ | 1.840m/6′ | 5.632m/18’5″ | 2.308m/7’6″ |
| GH146 Tri-Axle | 185/70R13C | 3500kg | 910kg | 4.285m/14′ | 1.840m/6′ | 6.162m/20’2″ | 2.308m/7’6″ |

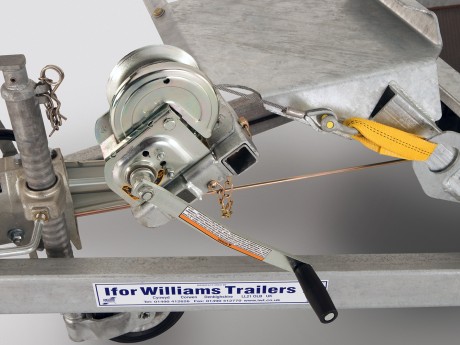

Various options and accessories are available for your trailer. Some may need to be ordered with your trailer as a factory fit item, while others can be purchased at a later date. Please check with your distributor before ordering.
